eXF 939

E-SPORT

Find a dealer

RAMME

Alu 6061.T6 Steps Semi-integrated battery SU21

TRAVEL (F/R) (MM)

130/130

FORGAFFEL

Rock Shox Reba RL-A7, Tapered,

SPRING/DAMPING SYSTEM

Solo Air/MotionControl + LO

KRANKSÆT

Shimano FC-E8000-B 34T

BAGSKIFTER

Shimano XT RD-M8000 GS Shadow Plus

SKIFTEGREB

Shimano SLX SL-M7000 RapidFire Plus

FREEWHEEL/CASSETTE

SunRace CSMS8 11-46T

KÆDE

KMC X11ET Turbo Power

BREMSER

Shimano BR-M6000 hydraulic disc brake

STYRFITTINGS

FSA SX (I/E) 1-1/8" / 1.5"

fornav

Shimano HB-M6010-B CL 15x110mm

Bagnav

Shimano FH-M6010-B CL 12x148mm

Fælg

Weinmann Spike 35 Disc Race 32H

Eger

Sapim Leader Black

DÆK

Schwalbe Nobby Nic 29x2.65"

FREMPIND

ONE Race

STYR

ONE Race raised

SALDEPIND

Crankbrothers Highline dropper, 125mm travel

SADEL

Selle Royal Seta Performa

GEAR

1x11

størrelse

17.0"(M), 19.0"(L), 21.0"(XL)

OPLADNINGSCYKLUS

1000

MAX SUPPORT SPEED

25km/h

ROTOR DIAM (MM)

180/180

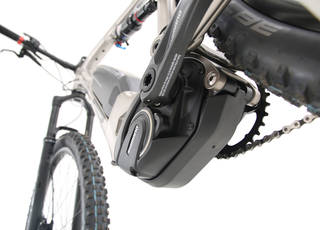

DRIVE UNIT

DU-E8000 **BLDC 36V / 250W / 70Nm

DISPLAY

SC-E8000 Sport

E-BIKE SYSTEM

Shimano STePS E8000 Middle Drive Unit

grip/tape

ONE MTB Lock-on dual density kraton-gel

CHARGING TIME (HOURS)

BATTERI

BT-E8010 Li-Ion 36V / 14Ah / 504Wh

BAGDÆMPER

Rock Shox Monarch RT

Show full specification

FRAME SIZE	17.5"(M)	19.0"(L)	21.0"(XL)
A SEAT TUBE LENGTH (mm)	17.5"(M) : 431	19.0"(L) : 482	21.0"(XL) : 533
B EFFECTIVE TOP TUBE LENGTH (mm)	17.5"(M) : 602	19.0"(L) : 626	21.0"(XL) : 640
S STACK HEIGHT (MM)	17.5"(M) : 616.1	19.0"(L) : 625.4	21.0"(XL) : 634.6
R REACH (MM)	17.5"(M) : 431.2	19.0"(L) : 451.9	21.0"(XL) : 462
C SEAT TUBE ANGLE (degree)	17.5"(M) : 74.5°	19.0"(L) : 74.4°	21.0"(XL) : 74.3°
D HEAD TUBE ANGLE (degree)	17.5"(M) : 67.5°	19.0"(L) : 67.5°	21.0"(XL) : 67.5°
BBd BB DROP (mm)	17.5"(M) : 40	19.0"(L) : 40	21.0"(XL) : 40
E CHAINSTAY LENGTH (mm)	17.5"(M) : 440	19.0"(L) : 440	21.0"(XL) : 440
F WHEELBASE (mm)	17.5"(M) : 1163.1	19.0"(L) : 1187.4	21.0"(XL) : 1201.7
HS HEAD TUBE SIZE	17.5"(M) : IHS 1-1/8"-1.5" (FSA NO.9M/CUP/TH/NO.7B	19.0"(L) : IHS 1-1/8"-1.5" (FSA NO.9M/CUP/TH/NO.7B	21.0"(XL) : IHS 1-1/8"-1.5" (FSA NO.9M/CUP/TH/NO.7B
G HEAD TUBE LENGTH (mm)	17.5"(M) : 90	19.0"(L) : 100	21.0"(XL) : 110
SP SEAT POST DIAMETER (mm)	17.5"(M) : 31.6	19.0"(L) : 31.6	21.0"(XL) : 31.6
SC SEAT CLAMP DIAMETER (mm)	17.5"(M) : 34.9	19.0"(L) : 34.9	21.0"(XL) : 34.9
STEM LENGTH (mm)	17.5"(M) : 60	19.0"(L) : 60	21.0"(XL) : 60
DUA DRIVE UNIT ANGLE (degree)	17.5"(M) : DU-E8000-1°	19.0"(L) : DU-E8000-1°	21.0"(XL) : DU-E8000-1°
HANDLEBAR WIDTH (mm)	17.5"(M) : 740	19.0"(L) : 740	21.0"(XL) : 740
CRANK LENGTH (mm)	17.5"(M) : 175	19.0"(L) : 175	21.0"(XL) : 175
SEAT POST LENGTH (mm)	17.5"(M) : 400	19.0"(L) : 400	21.0"(XL) : 400
